US Home Energy, Battery Backup & Inverter Sizing Hub

Calculate continuous battery runtime, starting inrush surge watts, pure sine wave inverter requirements, and US National Electrical Code (NEC) wire gauge sizes for any household or RV appliance.

100% Free & Unbiased
Pure Sine Wave (92% Eff)
NEC Table 310.16 AWG
LiFePO4 90% DoD Safe
Interactive Engineering Sizing Engine

Battery Backup & Inverter Sizing Calculator

Instant mathematical calculations for US household appliances, RVs, and off-grid solar banks.

Live recalculation on input
Watts (W)
Normal continuous draw while operating
Surge (W)
Motor / compressor startup inrush current
Select preset or enter custom Ah
Total Amp-Hours (Ah) capacity
Estimated Runtime Net AC Output
Calculating...
Continuous 100% constant run
Duty-Cycle Real World: Accounting for cycling compressor
--
Safe Usable Energy
-- Wh
Total: -- Wh
Inverter Rating
-- W
Pure Sine Wave
Solar Array (5h)
-- W
MPPT 80% derated
NEC Cable Gauge
-- AWG
Draw: -- A
Recommended DC Overcurrent Fuse: --

Multi-Capacity Runtime Comparison Chart (LiFePO4 vs. AGM)

Comparing continuous operational hours across standard US 12V/24V battery bank capacities.

Rendering comparison chart...
★

US Engineer Recommended Hardware Matches

Updated for US 120V • In Stock on Amazon.com
1. Inverter Pure Sine

Renogy 300W 12V Pure Sine Wave Power Inverter

Handles inrush startup current • Low idle draw

Check Amazon Price
2. Battery LiFePO4

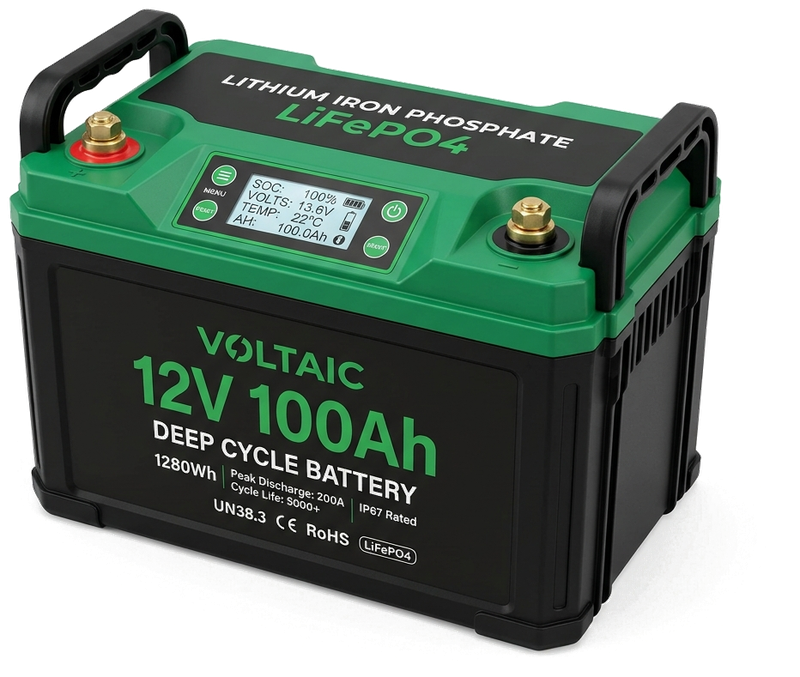

LiTime 12V 100Ah LiFePO4 Lithium Battery with 100A BMS

4,000+ Deep Cycles • Built-in Low-Temp BMS

Check Amazon Price
3. Solar Kit Recharge

Renogy 400 Watt 12V Solar Starter Kit with 30A Rover MPPT

High-efficiency cells • Full recharge in ~5h sun

Check Amazon Price
4. Solar Generator All-In-One

BLUETTI EB3A Portable Power Station (268Wh, 600W Inverter)

Zero-wiring alternative • Built-in inverter & MPPT

Check Amazon Price
* As an Amazon Associate, TheDivineX earns from qualifying purchases. Real-time pricing and stock updated live on Amazon.com.
★ Amazon.com US Hardware Recommendations

Best-Selling Solar Panels, LiFePO4 Batteries & Inverters

Browse our curated engineering catalog of 30+ top-rated US 12V/24V batteries (LiTime, Renogy, Battle Born), Pure Sine Inverters, and All-in-One Portable Power Stations with live Amazon pricing.

Explore Hardware Catalog →
Quick Engineering Cheat Sheet

Typical US Household Appliance Wattage & Inverter Sizing Table

Standard electrical characteristics for common 120V AC household and RV devices.

Appliance Name Continuous Watts Startup Surge Min. Inverter 100Ah LiFePO4 Runtime

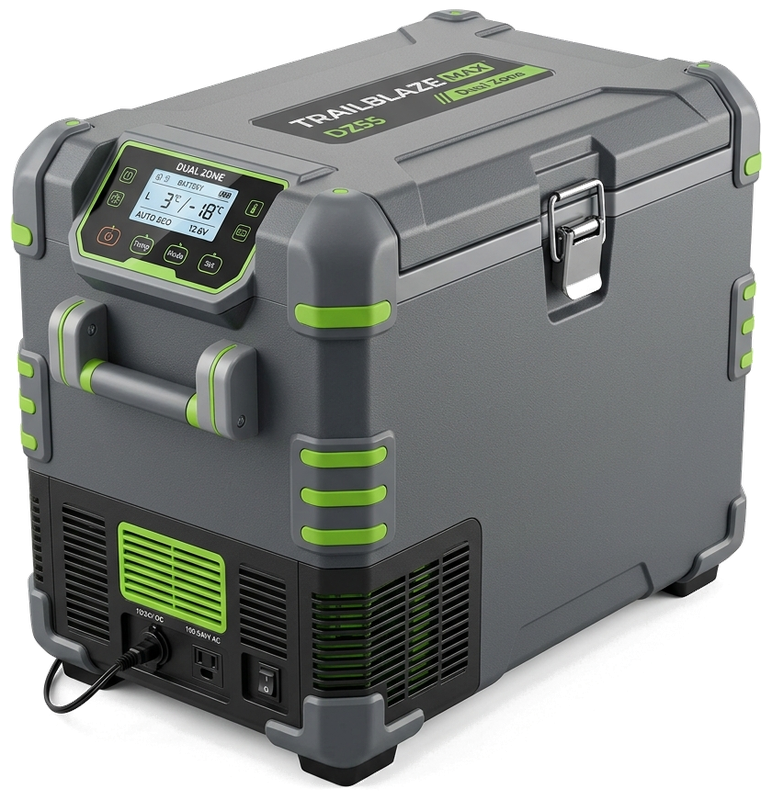

12V RV Compressor Fridge 50W (25W avg) 150W 300W Pure Sine ~39.7 Hours (50% Duty)

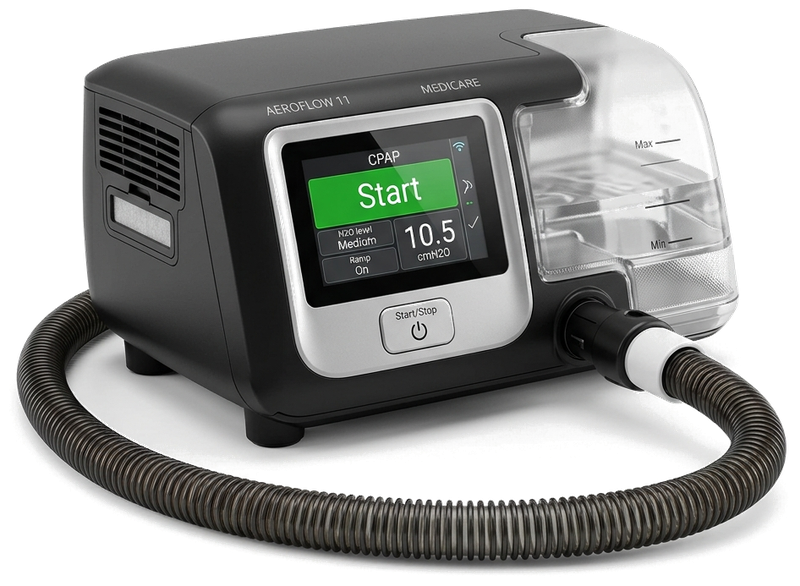

ResMed CPAP (No Heat) 35W 50W 300W Pure Sine ~28.4 Hours (3.5 Nights)
1000W Countertop Microwave 1400W electrical 2100W 2000W Pure Sine ~42 Minutes (~15 meals)

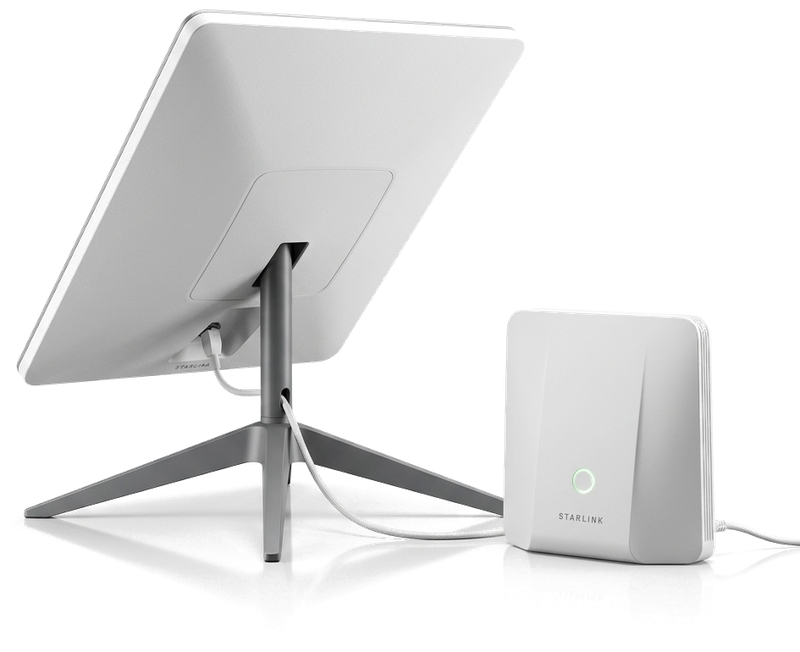

Starlink Gen 3 Satellite Dish 75W 110W 300W Pure Sine ~13.2 Hours

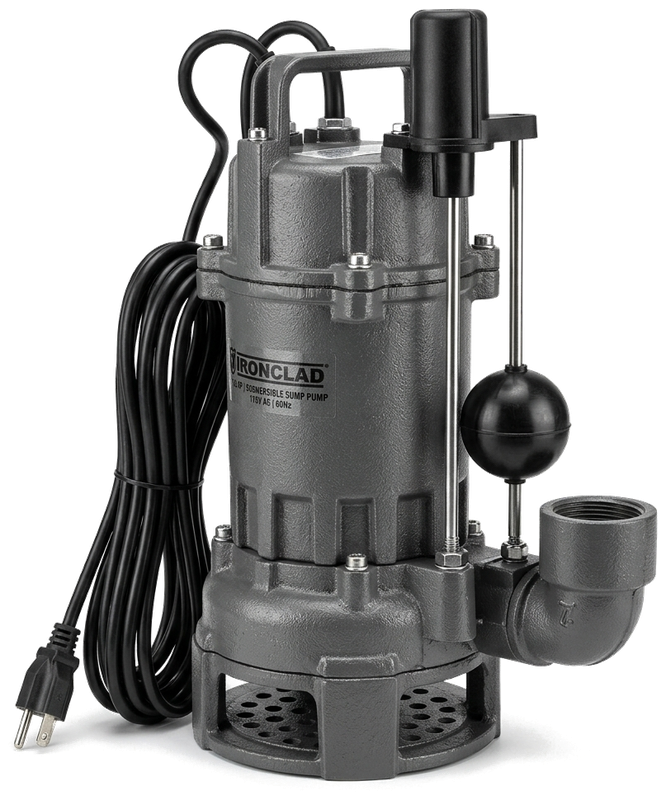

1/2 HP Sump Pump 850W 2200W 2000W Pure Sine ~5.8 Hours (20% Duty)

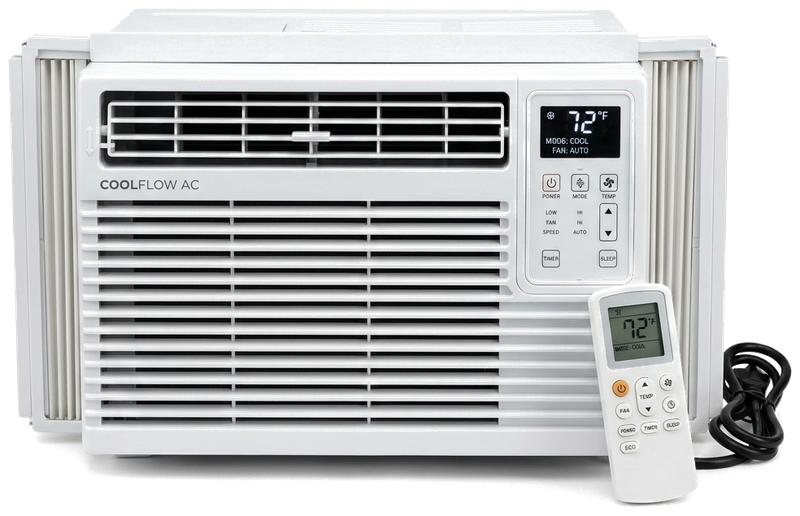

5,000 BTU Window AC 480W 1400W 1500W Pure Sine ~3.2 Hours (65% Duty)

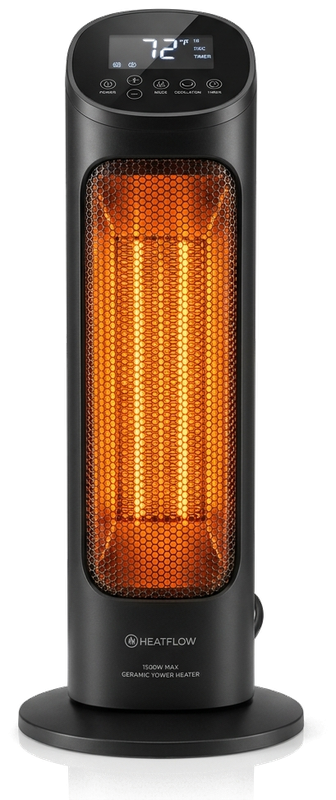

1500W Portable Space Heater 1500W 1500W 2000W Pure Sine ~40 Minutes
Engineering Knowledge Base

US Electrical Standards & Inverter Sizing Rules

Fundamental calculations required to safely wire DC-to-AC power stations without violating NEC code or tripping internal inverter fault alarms.

1

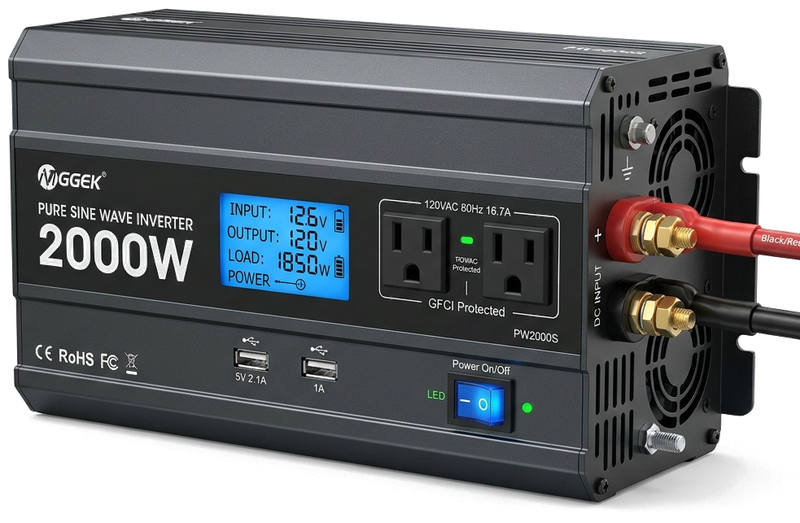

Pure Sine Wave vs. Modified

Modified sine wave inverters produce jagged square-wave harmonics that overheat AC induction motors (compressors, fans, pumps) and destroy sensitive digital electronics. Always select a Pure Sine Wave Inverter with < 3% THD for US appliances.

2

Inductive Surge Multipliers

Resistive loads (space heaters, incandescent bulbs) have zero startup surge. Inductive motor loads (refrigerators, air conditioners, sump pumps) draw 2.5x to 3.5x continuous watts during the initial 0.5-second rotor lockup.

3

NEC AWG Cable Sizing

High DC current causes severe voltage drop. Running 1,200W on a 12V battery draws over 100 Amps DC! Never use undersized cables. Adhere strictly to 2 AWG or 1/0 AWG pure copper with a Class-T or ANL inline fuse located within 7 inches of the battery terminal.
